At Machinery Specialist, we supply a premium range of forestry grapple saws designed to maximise productivity, safety and control in timber handling, tree removal and land-clearing operations. Our grapple saw attachments are engineered for powerful cutting performance and reliable log handling, making them ideal for contractors, arborists and forestry professionals who need efficient and durable equipment.
• Powerhand Grapple Saw
A high-performance grapple saw attachment that delivers fast and precise cutting for tree felling, pruning and processing work. This model is perfect for operators who require improved workflow and safer cutting methods in challenging environments.
• Log Grapple – PFIMX Series
A versatile and lightweight forestry log grapple known for its excellent strength, wide jaw opening and smooth handling. The PFIMX Series is suitable for excavators, tractors, telehandlers and other carriers, making it a top choice for professional log-handling tasks.
• Log Grapple – HD Series
A heavy-duty timber grapple built for demanding applications. The HD Series offers superior durability, strong gripping capability and reinforced construction, providing reliable performance when moving, loading or sorting larger and heavier logs.
Take versatility to the next level!

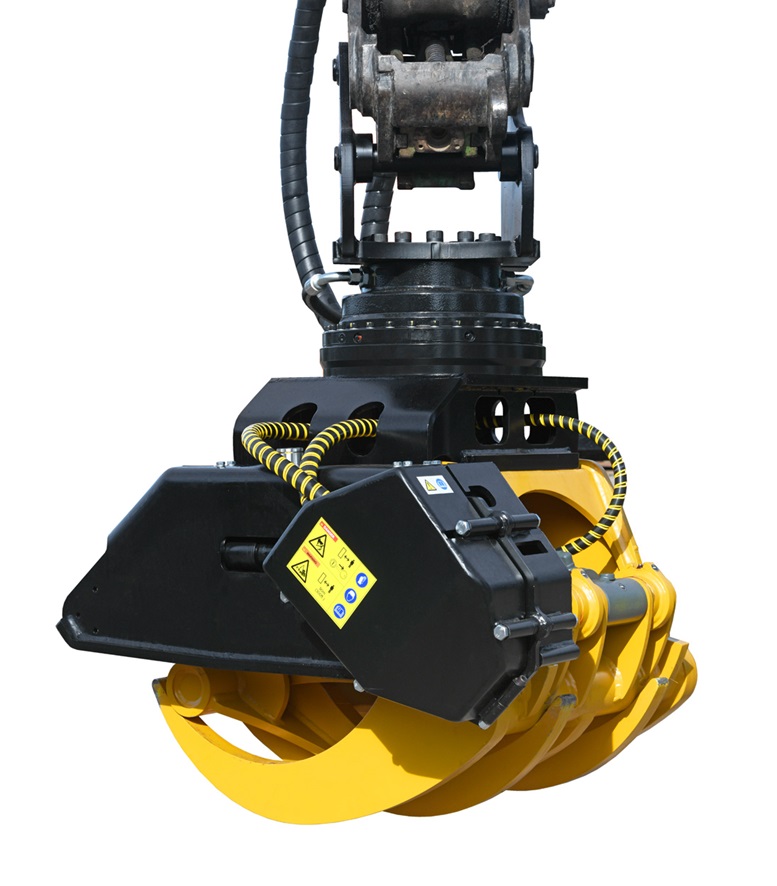

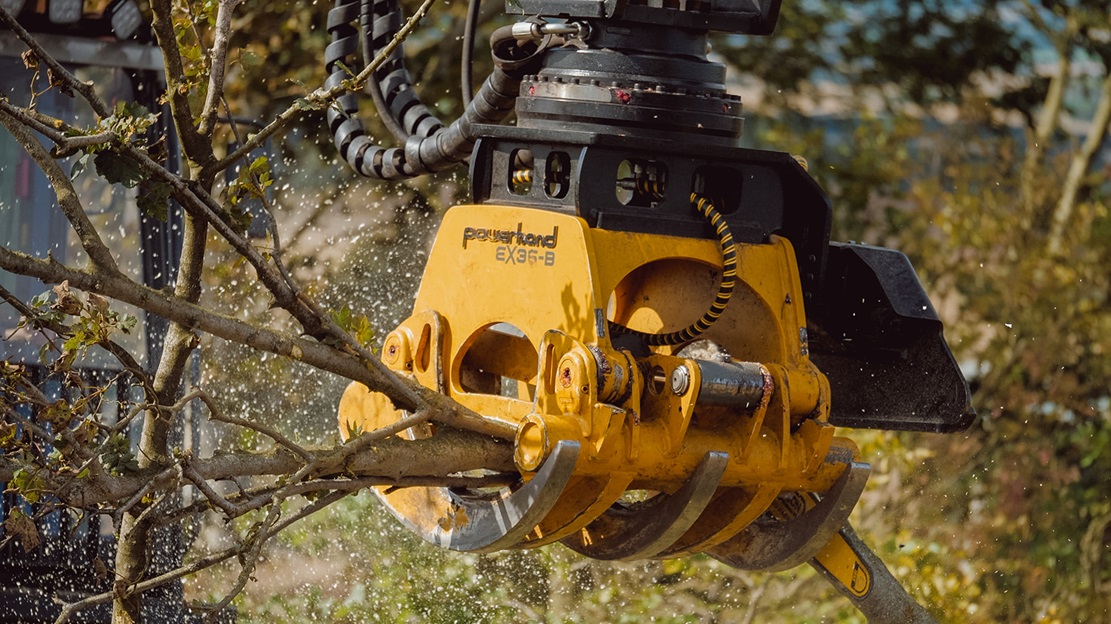

The Powerhand Grapple Saw allows you to turn your Ex Series grapple into a lean, mean, chopping machine.
Ideal for forestry site clearance, cross-cutting oversized timber, or managing windblown areas, the Powerhand Grapple Saw is engineered to handle tough jobs with precision and ease.
Models:
Powerhand Grapple Saw units require only one hydraulic (flow and return) service to operate. Bar return, chain tensioning, and lubrication are all automatic built-in functions.
Saw cassettes are available in 0.40 inch and 0.70 inch pitch chain for many applications and various models of each pitch allow for the perfect partnership of grapple and saw cassette for different installation types based on machine requirements
For swinging applications, grapple saws are partnered with Indexator GC124S rotators and for rigid installations the unique XR400 saw rotator is used. Both options allow 100% continuous rotation and internally routed hoses for maximum hose life and operator comfort
Contact our team today for a quote or more information.
Frequently Asked Questions:
Q: What are the available models and specifications of the Powerhand Grapple Saw?
A: The Powerhand Grapple Saw is available in three models, with unit weights ranging from 165 kg to 254 kg. They are suitable for excavators weighing between 8 to 30 tonnes. The grapple capacity is 0.28 m², and the jaw opening measures 1,410 mm.
Q: What are the saw cassette options for the Powerhand Grapple Saw?
A: The grapple saw packages are customizable, offering a choice between 0.404″ or 3/4″ pitch harvester chain saw cassettes. This allows for optimal cutting performance tailored to specific applications.
Q: What rotator options are available for different applications?
A: For swinging applications, grapple saws are partnered with Indexator GC124S rotators, while for rigid installations, the unique XR400 saw rotator is used. Both options allow 100% continuous rotation and internally routed hoses for maximum hose life and operator comfort.
Q: What are the hydraulic requirements for operating the Powerhand Grapple Saw?
A: The Powerhand Grapple Saw units require only one hydraulic (flow and return) service to operate. Bar return, chain tensioning, and lubrication are all automatic built-in functions, simplifying the hydraulic setup.
Q: What are the primary applications of the Powerhand Grapple Saw?
A: The Powerhand Grapple Saw is ideal for forestry site clearance, cross-cutting oversized timber, and managing windblown areas. It is engineered to handle tough jobs with precision and ease, enhancing versatility in forestry operations.
For more information or to request a quote, please contact our team today.
The PFIMX wood grapple is designed with a lightweight yet durable structure for efficient handling of timber of all sizes. Suitable for excavators, backhoe loaders, telescopic handlers, and tractors, it offers strong gripping capability while maintaining excellent manoeuvrability. Its design makes it ideal for forestry operations, log transport, sawmill work, and general timber handling.
Two tip configurations are available to match different working conditions. The OPEN version provides maximum versatility when dealing with irregular or uneven logs, as well as when operating in tight or confined spaces where precision is essential. The CLOSED version offers superior stability and safety when gripping large or heavy logs, making it ideal for loading, storage, and controlled movement.
The hydraulic system operates using a double-acting line, ensuring smooth opening and closing of the grapple for consistent performance. Safety is built in through an integrated block and relief valve on all models except the 1000R, protecting the system during heavy loads. The 1400HD, 1600HD, and 1800HD versions include additional lateral reinforcements along the claws and a double-box reinforcement frame for extra strength during demanding operations.
All PFIMX grapples can be supplied with a turnkey kit that includes a machine-specific mounting bracket and hose kit, ensuring fast installation and immediate use.
Q: What is the PFIMX wood grapple used for?
A: It is designed for gripping and handling logs of various sizes on excavators, backhoes, telescopic handlers, or tractors.
Q: What is the difference between the open and closed tips?
A: Open tips offer better manoeuvrability on uneven logs or in tight spaces, while closed tips provide greater stability when handling large, heavy timber.
Q: What hydraulic system does the PFIMX require?
A: It operates with a double-acting hydraulic line for smooth and reliable grapple movement.
Q: What safety features are included?
A: All models (except the 1000R) include an integrated block and relief valve, with HD versions featuring reinforced claws for heavy-duty work.
For more details or to request a quote, contact our team today.
The PFIMX wood grapple is designed with a lightweight yet durable structure for efficient handling of timber of all sizes. Suitable for excavators, backhoe loaders, telescopic handlers, and tractors, it offers strong gripping capability while maintaining excellent manoeuvrability. Its design makes it ideal for forestry operations, log transport, sawmill work, and general timber handling.
Two tip configurations are available to match different working conditions. The OPEN version provides maximum versatility when dealing with irregular or uneven logs, as well as when operating in tight or confined spaces where precision is essential. The CLOSED version offers superior stability and safety when gripping large or heavy logs, making it ideal for loading, storage, and controlled movement.
The hydraulic system operates using a double-acting line, ensuring smooth opening and closing of the grapple for consistent performance. Safety is built in through an integrated block and relief valve on all models except the 1000R, protecting the system during heavy loads. The 1400HD, 1600HD, and 1800HD versions include additional lateral reinforcements along the claws and a double-box reinforcement frame for extra strength during demanding operations.
All PFIMX grapples can be supplied with a turnkey kit that includes a machine-specific mounting bracket and hose kit, ensuring fast installation and immediate use.
Q: What is the PFIMX wood grapple used for?
A: It is designed for gripping and handling logs of various sizes on excavators, backhoes, telescopic handlers, or tractors.
Q: What is the difference between the open and closed tips?
A: Open tips offer better manoeuvrability on uneven logs or in tight spaces, while closed tips provide greater stability when handling large, heavy timber.
Q: What hydraulic system does the PFIMX require?
A: It operates with a double-acting hydraulic line for smooth and reliable grapple movement.
Q: What safety features are included?
A: All models (except the 1000R) include an integrated block and relief valve, with HD versions featuring reinforced claws for heavy-duty work.
For more details or to request a quote, contact our team today.
Looking for more heavy-duty equipment to power up your operation? At Machinery Specialist, we go beyond the basics to bring you a complete range of advanced forestry and land-clearing solutions. Our lineup includes Tree Shears for precise and powerful cutting, Stump Cutters and Stump Grinders for efficient root removal, and Forestry Mulchers that turn vegetation into fine mulch in minutes. Need more control? Our Grapple Saws and Log & Forestry Grabs give you unmatched handling and cutting accuracy for even the toughest timber jobs. Explore our full range of specialist attachments — built for performance, reliability, and serious results.
