The LBG telescopic excavator boom is designed to significantly extend your machine’s working radius, improving both reach and flexibility for demanding forestry and material-handling tasks. Developed for use with grapples and feller bunchers, it provides a powerful solution for operations requiring long-distance cutting, grabbing, or placement work. With three extension sections operated through pulleys and steel cables, the boom can extend from 10 to 25 metres in any direction.
This system is engineered exclusively for excavator installation and can safely support up to 325 kilograms at full reach. Its robust construction and smooth extension movement allow operators to tackle jobs that would otherwise require larger or specialised machinery.
For precise and safe operation, the LBG boom comes equipped with a wireless camera positioned at the top. The live feed is displayed on a screen inside the cab, giving the operator full visibility of the working area even at maximum extension. The hydraulic setup requires two single- or double-acting lines, along with a drainage line, ensuring smooth and reliable operation.
Safety is further enhanced by a lock valve on the hydraulic cylinder, which keeps the system stable and prevents issues caused by pressure drops. Every model is supplied with a full turnkey kit, including a machine-specific mounting bracket and dedicated hose kit, allowing quick installation and immediate integration into your workflow.
Q: What is the LBG telescopic boom used for?
A: It is designed to extend the working radius of excavators for tasks involving grapples, feller bunchers, and long-reach forestry or material-handling operations.
Q: How far can the telescopic boom extend?
A: It features three extension sections that provide a working reach ranging from 10 to 25 metres in any direction.
Q: What visibility features does the LBG boom include?
A: A wireless camera mounted at the top of the boom transmits live video to a cab-mounted screen for clear, safe operation at full extension.
Q: What hydraulic system does the boom require?
A: It operates with two single- or double-acting hydraulic lines plus a drainage line, ensuring smooth and reliable extension control.
For more details or to request a quote, contact our team today.
The OMEF LBG Series telescopic booms are built for operators who need exceptional reach, clear visibility and total control when working in areas that are difficult or unsafe to access with a standard excavator arm. Constructed from high strength steel and engineered for smooth, stable extension, the LBG Series allows your machine to reach from 10 metres out to an impressive 25 metres while safely supporting loads up to 325 kg at full stretch. Each boom is supplied with a complete excavator mounting kit and hydraulic hose setup for quick and reliable installation. A wireless camera positioned at the boom tip provides live visibility straight to the operator’s cab, helping you work with precision around trees, slopes, waterways and obstacles. From forestry and land clearing to municipal maintenance and specialised access work, the LBG Series provides a professional long-reach solution that delivers strength, safety and unmatched versatility.

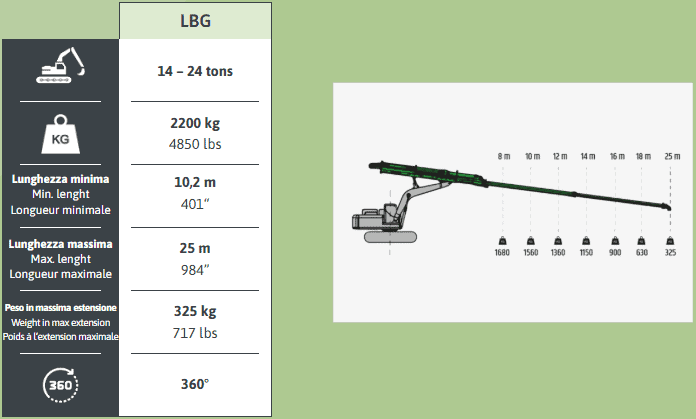

Specifications and Features:
Adjustable working reach from 10 to 25 metres
Maximum supported load of 325 kg at full extension
Supplied with mounting bracket and hydraulic hose kit
Compatible with single or double acting hydraulic lines plus a drain line
Wireless camera system mounted at boom tip for improved visibility and safer operation
The LBG telescopic boom is designed to expand the working range of your excavator without compromising stability or control. Its smooth telescoping sections allow you to trim tall trees, maintain steep embankments, work across ditches or rivers, and operate effectively in areas where repositioning a machine would be difficult or unsafe. The wireless camera gives the operator clear real-time feedback, greatly improving accuracy when positioning grapples, cutters or other attachments. With its strong load capacity, rugged construction and highly adaptable hydraulic setup, the LBG Series is an ideal choice for professionals who need extended reach combined with reliable performance. Whether you work in forestry, contracting, council maintenance or environmental management, the LBG telescopic boom adds significant capability and value to your excavator fleet.
