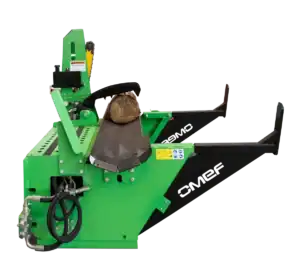

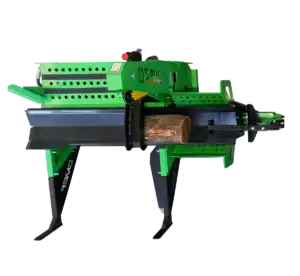

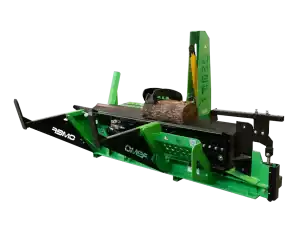

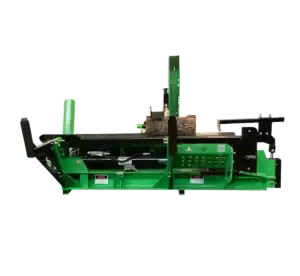

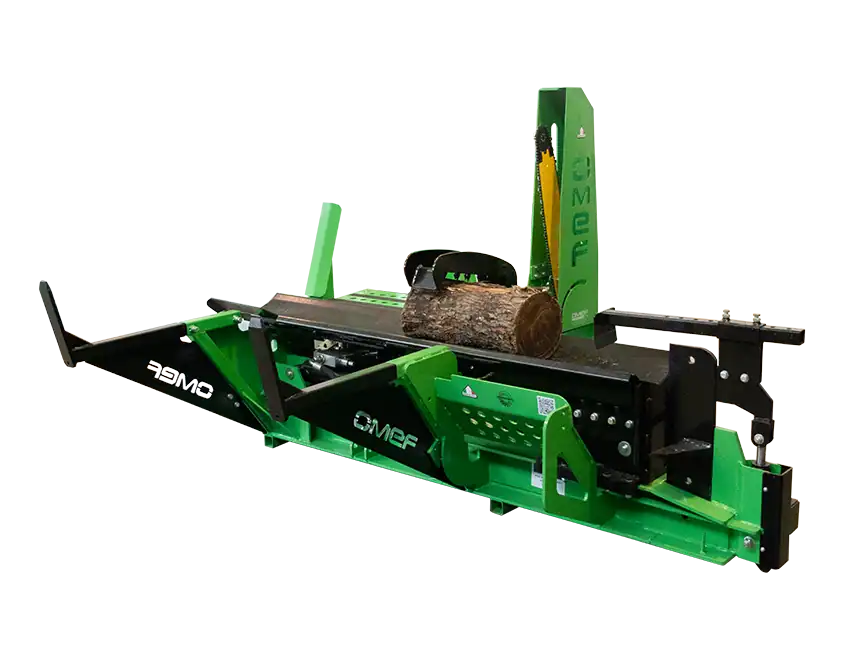

The OMEF TS400 firewood processor is an advanced, fully autonomous system designed to section and split firewood with ease, comfort, and maximum productivity. Suitable for excavators, skid steer loaders, and tractors, the TS400 handles every stage of the process — from loading to cutting to splitting — without requiring the operator to leave the cab.
All functions are controlled via the included 12-volt radio remote control, offering precision, convenience, and complete safety. Thanks to its speed and efficient workflow, the TS400 can process large quantities of wood effortlessly, reducing manual labour and fatigue while producing consistently sized firewood for stoves and fireplaces.
Technical Features
The TS400’s work cycle is divided into three automated stages:

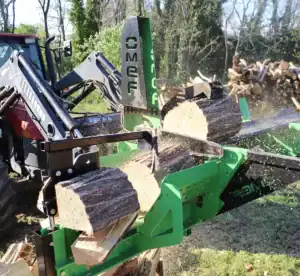

Loading logs up to 3 metres long, achieved by bending the excavator boom or tilting the front pistons.

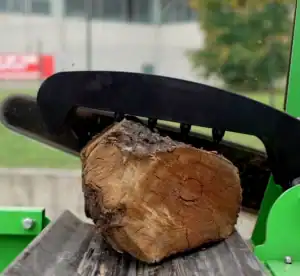

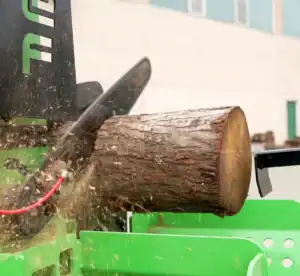

Sectioning the log to adjustable lengths of 20 or 60 centimetres, using a sliding carriage and hydraulic chainsaw bar.

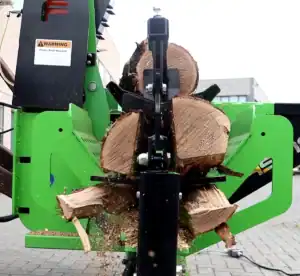

Final splitting of each cut section into 2 or 4 pieces, depending on the desired firewood size.
The hydraulic system operates with a single-acting line plus drainage, ensuring smooth control during cutting and splitting.

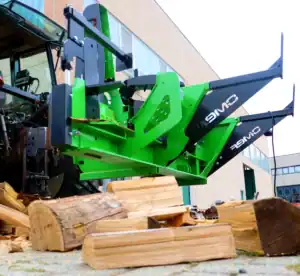

Each TS400 unit can be delivered with a complete turnkey installation kit, including a mounting bracket specific to the operating machine and a dedicated hose kit for fast, ready-to-go setup.
Q: What is the TS400 firewood processor used for?
A: It sections and splits firewood automatically, handling the entire workflow from log loading to final splitting with minimal operator effort.
Q: How is the TS400 controlled?
A: All operations are managed using a 12 V radio remote control, allowing the operator to remain safely inside the cab.
Q: What machines can the TS400 be installed on?
A: It can be mounted on excavators, skid steers, and tractors using the supplied mounting bracket and hose kit.
Q: What hydraulic system does the TS400 require?
A: It uses a single-acting hydraulic line with drainage to power the cutting and splitting mechanisms.
For more details or to request a quote, contact our team today.
The OMEF TS400 Series is engineered to transform raw timber into clean, ready-to-use firewood with exceptional speed, precision and operational safety. Constructed from heavy duty wear-resistant steel and driven by a powerful hydraulic system, the TS400 automates the entire workflow including log loading, measuring, cutting and splitting. Every function is controlled directly from the operator’s seat using an intuitive 12 volt remote, eliminating manual handling and significantly increasing productivity. Designed to operate with excavators, skid steers and tractors, the TS400 delivers unmatched versatility across commercial firewood production, forestry maintenance, property management and biomass preparation. Built for demanding workloads and continuous operation, the TS400 Series provides consistent performance, uniform firewood quality and outstanding durability in all working conditions.

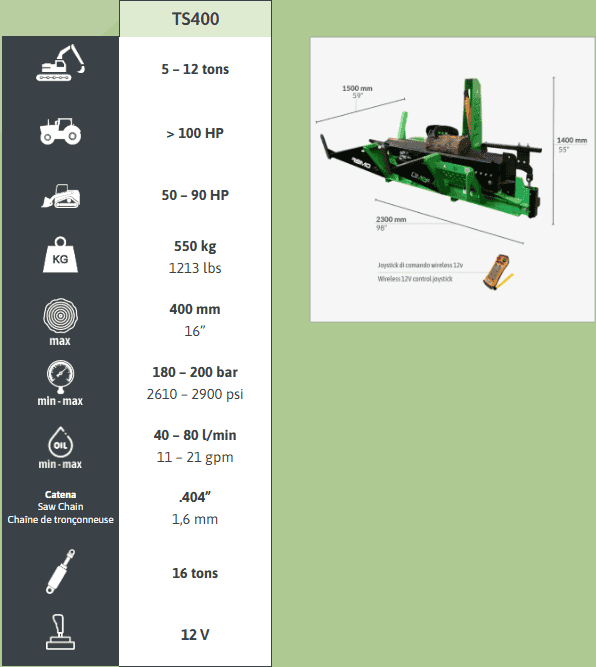

Specifications:

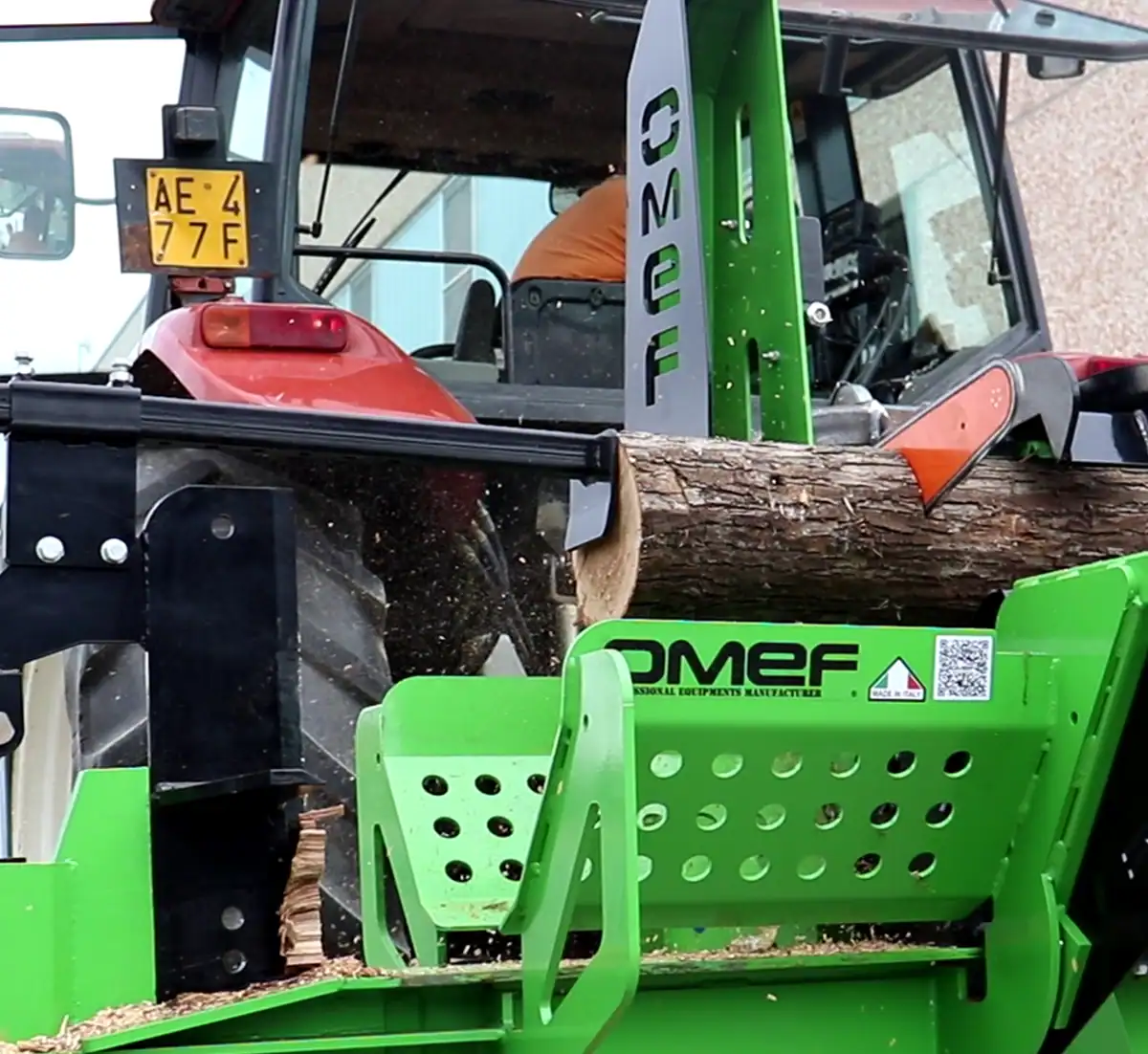

Compatible carrier machines: excavators, skid steer loaders and tractors
Maximum log length: 3 metres
Maximum cut diameter: 400 mm
Cutting length options: 20 cm or 60 cm
Splitting output: 2 way or 4 way splitting
The TS400 is a high performance, fully automated firewood processor designed for operators who require reliable output with minimal physical effort. The system securely grips and sections logs before splitting them into uniform pieces, producing clean and consistent firewood suitable for domestic heating, commercial sale or biomass applications. Its ability to handle long and wide diameter logs makes it ideal for mixed timber operations and large scale processing environments. The reinforced structure, high torque hydraulics and smooth operating cycle ensure long lasting reliability, stable performance and superior throughput compared to manual or semi-mechanical firewood methods.
