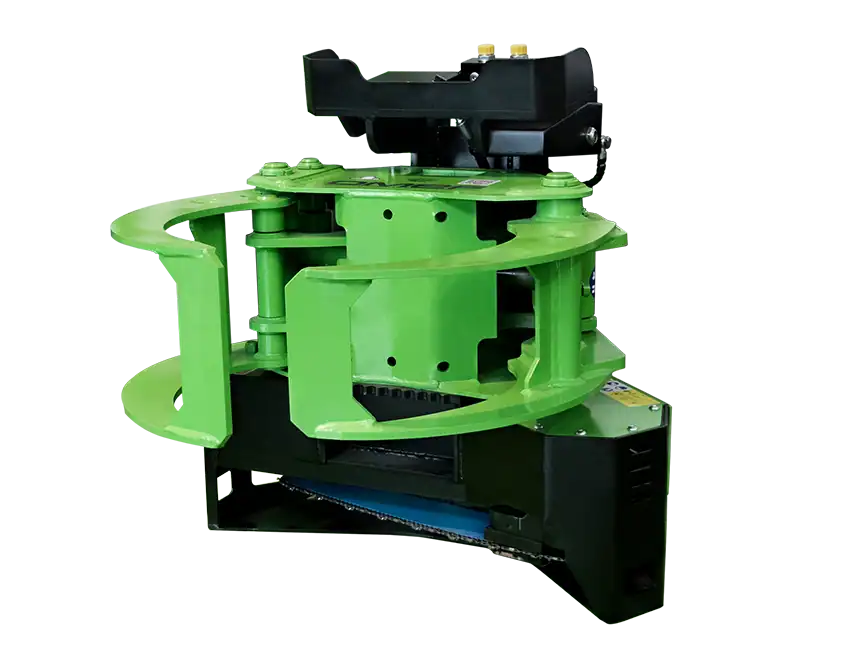

The GSA feller buncher is designed for demanding forestry work where trees must be felled and processed quickly and safely. Suitable for excavators and telescopic handlers, it is available in two models capable of cutting trunks from 250 to 650 millimetres in diameter, making it ideal for large-scale timber operations.
The machine performs the felling directly from the cutting head. Once the cut is made, the system immediately positions the trunk horizontally, allowing fast, controlled handling and efficient processing. The robust frame is built from wear-resistant steel and powered by a hydraulic motor for strong, consistent performance.
The hydraulic setup requires two double-acting lines and one free-flow return to tank. The cutting unit features a hydraulic chainsaw equipped with a rapid mechanical chain tensioner and automatic bar lubrication, ensuring smooth cutting cycles and reduced downtime.
Safety is enhanced through a lock valve on the hydraulic cylinder, which keeps the grapple securely closed even if hydraulic pressure drops. This ensures safe handling during cutting, lifting, and tree placement.
Each model is available with a full turnkey kit that includes a mounting bracket specific to your machine and a dedicated hose kit, allowing fast installation and immediate operation.
Q: What is the GSA feller buncher used for?
A: It is used for fast, controlled felling of trees in large-scale forestry operations where speed and precision are essential.
Q: What makes the GSA feller buncher effective?
A: Its hydraulic chainsaw, horizontal trunk positioning, and wear-resistant steel structure ensure powerful cutting and efficient handling.
Q: What machines can the GSA model be mounted on?
A: It can be installed on excavators or telescopic handlers using a dedicated mounting bracket and hose kit.
Q: What hydraulic system does the feller buncher require?
A: It operates with two double-acting lines and a free-flow return, powering the hydraulic motor and chainsaw efficiently.
For more details or to request a quote, contact our team today.
The OMEF GSA Series feller bunchers are purpose built to deliver exceptional cutting power and productivity across demanding forestry environments. Constructed with high strength wear-resistant steel and driven by a precise hydraulic cutting system, the GSA range allows operators to process trees up to 650 mm in diameter while maintaining a firm, controlled and stable grip. Each model integrates seamlessly with excavators or telescopic handlers, dramatically reducing manual labour and increasing overall operational efficiency. Whether the task involves land clearing, forest management, harvesting or storm recovery, the GSA Series provides dependable performance, consistent cutting accuracy and proven durability in harsh, high output working conditions.
Specifications:
Operating machine: 5 to 12 tonnes
Maximum cutting diameter: 400 mm
Installable on: excavators and telescopic handlers
The GSA 400 is a compact yet powerful solution designed for operators who require precision and agility without compromising performance. Ideal for selective felling and thinning operations, this model delivers fast cutting cycles and secure gripping strength, ensuring stable control of medium diameter logs. Its lightweight design maximises machine efficiency while maintaining excellent reliability in everyday forestry tasks.
Specifications:
Operating machine: 12 to 22 tonnes
Maximum cutting diameter: 600 mm
Installable on: excavators
The GSA 600 is engineered for heavy duty forestry applications where increased strength and cutting capacity are essential. Its reinforced frame, high performance hydraulic motor and robust clamping system enable smooth and safe handling of larger trees. This model excels in land development projects, storm cleanup operations and routine felling where high throughput and durability are critical to productivity.
Specifications:
Operating machine: 20 to 30 tonnes
Maximum cutting diameter: 650 mm
Installable on: excavators
The GSA 650 is the flagship model of the series, delivering maximum power and stability for industrial scale timber operations. Built to withstand extreme workloads, it offers exceptional cutting efficiency and a secure hold on large diameter trunks, ensuring controlled placement and safe operation in demanding environments. The GSA 650 provides unmatched performance and long term reliability for high production forestry work.
