Crush rubble onsite for easy reuse or removable with a Bucket Crusher attachment for your excavator.​

Quickly and easily reduce bricks, concrete, reinforced concrete, tiles, clays, asphalt slabs or other inert materials from demolition, quarries, mines, tunnels and recycling.​

Models:​

• 5 models available​
• Suitable for excavators from 7 to 45 tonnes, as well as backhoe loaders, wheel loaders and telescopic handlers.​
• Output size from 25mm to 125mm​
• Skid-steer loader and mini excavator version may be available on request.​
• Optional excavation teeth, dust suppression kit and iron separator.​

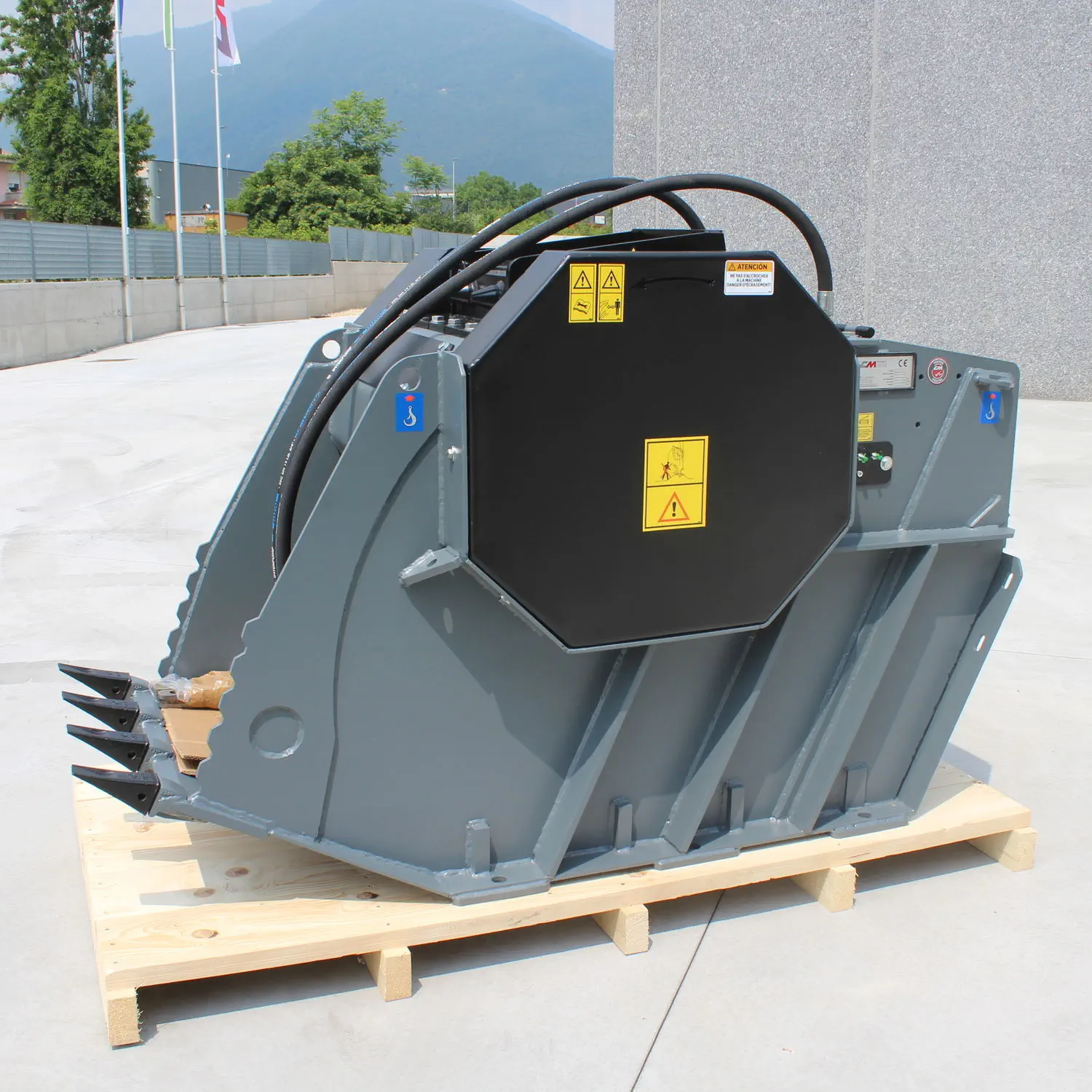

Minimise material disposal and transport costs with the CM CBF Series Crusher Bucket for excavators.​

With a structure made from Hardox 450 steel and crushing plates cast in manganese 18%, these buckets are built to withstand hard work.​

Centralised greasing and a single internal valve ensure maintenance is quick and easy.​

Take your excavator operations to the next level with the CM CBF Series Crusher Bucket. Contact our team today for an obligation free chat.

Frequently Asked Questions:

Q. What materials can the CM CBF Series Crusher Bucket process?
A: The CM CBF Series is designed to crush a variety of materials, including bricks, concrete (reinforced and non-reinforced), tiles, clays, asphalt slabs, and other inert materials from demolition, quarries, mines, tunnels, and recycling operations.

Q: What are the available models and their compatible machinery?
A: The series offers five models suitable for excavators ranging from 7 to 45 tonnes. Additionally, versions for skid-steer loaders and mini excavators are available upon request.

Q: How adjustable is the output size?
A: The crusher bucket allows for adjustable output sizes, ranging from 25mm to 125mm, enabling customization based on project requirements.

Q: Are there optional features available?
A: Yes, optional features include excavation teeth for enhanced digging capabilities, a dust suppression kit to minimize dust during operation, and an iron separator to remove metal contaminants from the crushed material.

Q: What materials are used in the construction of the crusher bucket?
A: The structure is made from Hardox 450 steel, known for its durability and wear resistance, while the crushing plates are cast in 18% manganese, providing robustness and longevity.

Q: How is maintenance handled?
A: The design includes centralized greasing and a single internal valve, ensuring that maintenance is straightforward and efficient, reducing downtime.

Q: Is there a version available for smaller machinery?
A: Yes, versions compatible with skid-steer loaders and mini excavators can be provided upon request, expanding the versatility of the CM CBF Series.
