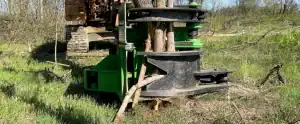

The OMEF tree shear is engineered for efficient and controlled cutting of trees in both forestry and urban environments. Available in six models, the range is designed to match varying cutting diameters and installation needs, making it compatible with excavators, tractors, backhoe loaders, and skid steer loaders. This versatility allows operators to choose the right configuration for different terrains, tree types, and machine sizes.
The shear operates using a single double-acting hydraulic line paired with a high-performance cylinder that enables the machine to cut and hold the tree in one smooth motion. This reduces handling time, improves safety, and extends the life of the equipment by minimising mechanical stress. The structure is built entirely from high-strength steel, ensuring long-term durability even under heavy-duty working conditions.
Cutting performance is driven by OMEF’s patented profile blade, welded directly to the frame. This blade is designed to penetrate dense and fibrous wood species such as eucalyptus, olive, and oak. For operators who primarily require a gripping tool, an optional bolted-blade version is available that allows the shear to function solely as a handling grapple.
Each tree shear can be supplied with a machine-specific mounting bracket and a dedicated hose kit upon request, making installation quick and straightforward.
Q: What is the OMEF tree shear used for?
A: It is designed for cutting and handling trees safely and efficiently in forestry and urban environments.
Q: How does the hydraulic system work?
A: A single double-acting hydraulic line powers the high-performance cylinder, allowing simultaneous cutting and holding of the tree.
Q: What makes the OMEF blade design effective?
A: The patented profile blade welded to the frame is built to penetrate tough wood fibres, making it suitable for species like olive, oak, and eucalyptus.
Q: Are different versions of the shear available?
A: Yes, a model with a bolted blade is available for operators who need to use the equipment primarily as a handling grapple.
For more details or to request a quote, contact our team today.
OMEF offers a comprehensive selection of tree shear models engineered to suit a wide variety of machine sizes, cutting diameters, and operational demands. From compact excavators to heavy-duty forestry machines, each model delivers reliable performance, precision cutting, and long-lasting durability. Below is an overview of all available models to help you identify the right solution for your application.
Suitable Machine Weight: 1.5 to 3 tonnes
Cutting Diameter: 40–150 mm
Compatible With: Excavators, skid steer loaders, backhoe loaders, tractors
The BI100 is ideal for lighter machines performing pruning, small tree removal, and vegetation control. Its compact size makes it perfect for urban work and tight access areas.
Suitable Machine Weight: 3 to 7 tonnes
Cutting Diameter: 50–200 mm
Compatible With: Excavators, skid steer loaders, backhoe loaders, tractors, telescopic handlers
The BI200 offers a strong balance of cutting power and manoeuvrability, making it a popular choice for councils, contractors, and land management teams.
Suitable Machine Weight: 8 to 14 tonnes
Cutting Diameter: 60–300 mm
Compatible With: Excavators, skid steer loaders, backhoe loaders, tractors, telescopic handlers
Designed for more demanding forestry and clearing operations, the BI300 delivers robust cutting power and exceptional reliability.
Suitable Machine Weight: 14 to 20 tonnes
Cutting Diameter: 60–400 mm
Compatible With: Excavators, skid steer loaders, backhoe loaders, tractors, telescopic handlers
The BI400 provides increased strength and cutting capacity for tougher applications, making it suitable for commercial forestry and large-scale land clearing.
Suitable Machine Weight: 23 to 30 tonnes
Cutting Diameter: 200–500 mm
Compatible With: Excavators
Built for serious forestry environments, the BI500 is engineered to cut large-diameter hardwoods with maximum efficiency and control.
Suitable Machine Weight: 30+ tonnes
Cutting Diameter: 270–700 mm
Compatible With: Excavators
The BI600 is the largest and most powerful model in the OMEF range, designed for industrial-scale logging, land clearing, and plantation management where maximum cutting capacity is essential.
