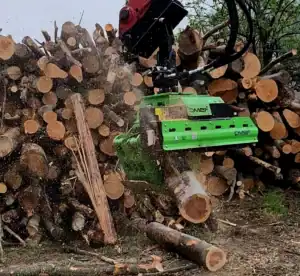

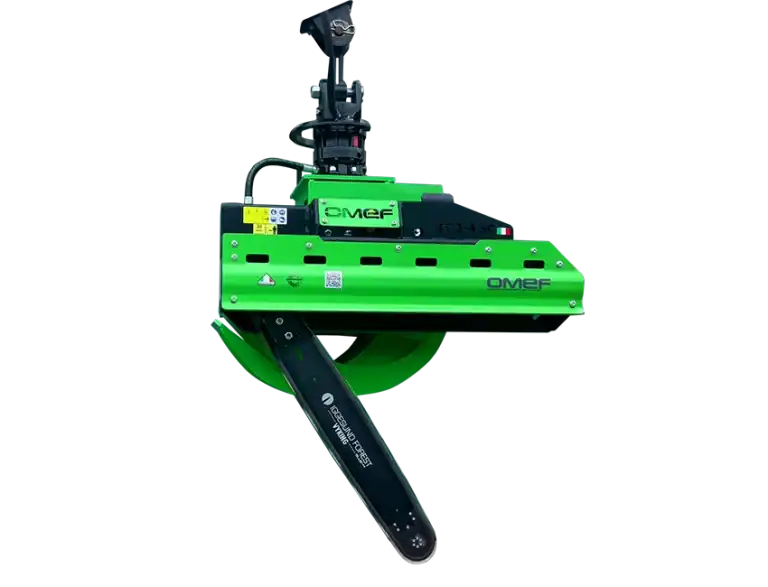

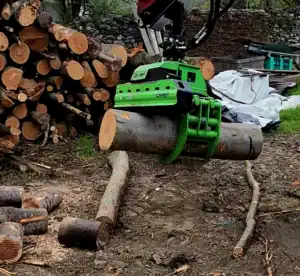

The OMEF PTH oscillating grapple saw is a powerful and versatile attachment designed for cutting and handling logs of various diameters on an excavator. Built for demanding forestry work and heavy-duty material handling, the PTH is available in two models capable of cutting from 450 to 900 millimetres in diameter.
The unit combines three key components:
• an oscillating rotator that enables full 360-degree rotation for maximum manoeuvrability
• a closed-tip, heavy-duty grapple with a maximum opening of up to 2 metres
• a hydraulic chainsaw kit capable of cutting logs up to 900 millimetres in diameter
This integrated design allows operators to grip, cut, rotate, and place logs with precision and efficiency, reducing handling time and improving safety on the job.
Technical Features
The grapple structure is made from high-strength, wear-resistant steel, reinforced with heavy profiles and powered by a double cylinder for superior gripping force and stability.
The hydraulic system uses:
• a single-acting line for the chainsaw unit
• a double-acting line for the grapple
• a double-acting line for the oscillating rotator
Safety is ensured through an integrated block and relief valve, protecting the system under heavy loads and preventing accidental release.
To simplify installation, every PTH model is available with a complete turnkey kit, including a machine-specific mounting bracket and a dedicated hose kit.
Frequent Asked Questions
Q: What is the PTH oscillating grapple saw used for?
A: It is designed for cutting and handling logs of various sizes, offering both gripping and sawing capabilities on an excavator.
Q: How much cutting capacity does the PTH provide?
A: It can cut logs from 450 to 900 mm in diameter, depending on the selected model.
Q: What hydraulic lines are required?
A: It uses a single-acting line for the saw, and double-acting lines for both the grapple and the 360-degree oscillating rotator.
Q: How does the system ensure safe operation?
A: A built-in block and relief valve protects the attachment and keeps the grapple securely closed during work.
For more details or to request a quote, contact our team today.
The OMEF PTH Series is built for operators who want to combine cutting, gripping and handling into one high performance attachment. Designed with a reinforced steel body and a professional grade hydraulic chainsaw system, the PTH Series gives you the ability to securely grab logs, cut them to size and position them safely without changing tools or slowing down your workflow. The wide opening grapple and strong clamping power deliver exceptional control even when working with large or irregular timber, while the rotating head provides smooth and precise placement during loading, stacking or sectioning. With each unit supplied ready to install, the PTH Series is an ideal solution for forestry contractors, timber yards, land clearing teams and operators who require reliable cutting performance and safe, controlled log handling day after day.
Specifications:
Suitable excavator size: 4 to 9 tonnes
Maximum cutting diameter: 400 mm
Best for: farm forestry, land maintenance, storm cleanup, small to medium log cutting
The PTH450 is the agile and versatile option for smaller machines. It offers fast cutting performance for medium diameter logs and delivers confident gripping and stable handling in tight or uneven terrain. With its compact size and efficient hydraulic saw, the PTH450 is perfect for operators who need reliable cutting power without sacrificing manoeuvrability.
Specifications:
Suitable excavator size: 12 to 18 tonnes
Maximum cutting diameter: 900 mm
Dynamic load capacity: approximately 5000 kg
Best for: commercial forestry, large log sectioning, industrial timber handling, biomass preparation
The PTH900 is built for serious logs and demanding production environments. Its reinforced frame, powerful cylinders and wide grapple opening allow it to handle oversized trunks with ease. The hydraulic saw cuts cleanly through large timber, while the rotating head and stable grip provide precise control during heavy lifting and stacking. Ideal for contractors and mills that need a dependable, high capacity cutting and handling system capable of working at full output day after day.
Rugged steel construction for maximum durability in forestry environments
Integrated hydraulic chainsaw capable of cutting logs up to 900 mm
Wide grapple opening for secure gripping of large or awkward log shapes
Smooth 360 degree rotation for accurate positioning and safe log placement
Automatic chain lubrication to extend cutting performance
Safety valve on the grapple cylinder to prevent accidental release
Supplied with mounting bracket and hydraulic hose kit for fast installation
Handles cutting and lifting in one attachment to reduce labour and machine swapping
Provides controlled, stable gripping for safer processing of large timber
Suitable for everything from small-scale maintenance to industrial forestry work
Allows operators to cut, lift, position and stack logs efficiently and consistently
Built for long life with minimal maintenance and dependable day-to-day performance
